Total Price: $12999
* Plus Applicable Charges

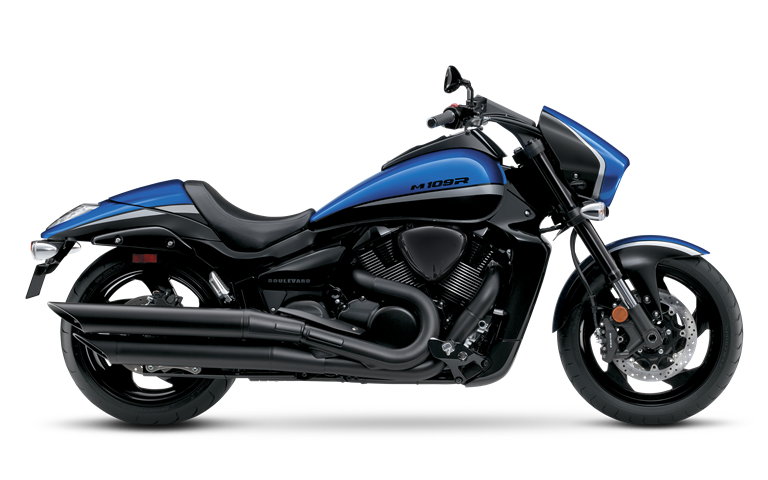

The 2021 Suzuki M109R B.O.S.S. is the performance cruiser other bikes wish they were. This dark and muscular M109R has a powerful V-twin engine using some of the largest pistons in the industry – a bike that will get your adrenaline flowing whenever you ride. This 109 cubic inch engine is wrapped with aggressive blacked-out styling that includes slash-cut mufflers, drag-style bars, a supplied solo seat cowl, and a distinctively shaped headlight nacelle that’s uniquely Suzuki. This bike is not just about looks, as stout inverted forks, a hidden single-shock rear suspension, and an ideally designed saddle deliver responsive handling and an exceptionally comfortable ride. Hold on as performance never looked so good, or so dark.
Choose from a pair of new, two-tone paint schemes on the 2021 Boulevard M109R B.O.S.S. – Candy Daring Red and Glass Sparkle Black or the Metallic Triton Blue and Glass Sparkle Black treatment with contrasting graphics. Both high-quality color treatments visually announce that this is a serious muscle cruiser and true to Suzuki’s performance heritage.
The deep, rich paint is flawlessly applied to a long, imposing muscle cruiser that’s unlike any other. From the distinctive headlight nacelle to drag-style handlebars and massive 240mm wide rear tire, this motorcycle is a class of one.
The M109R’s bodywork is sleek and purposeful from nose to tail and looks even sleeker when the optional tail cowl is on in place of the passenger seat.
The 109 cubic inch (1783cc), 54-degree, V-twin engine rumbles through a pair of large-diameter mufflers as it puts power through the shaft drive and down into the 240mm wide rear tire.
Similar to the brakes from a GSX-R1000R, the M109R’s radial-mounted, dual front brakes deliver sure stopping performance. The large-diameter inverted fork and the 240 mm wide rear tire give the bike a tough, aggressive stance that also delivers a smooth, controlled ride.
The 109 cubic inch (1783cc), eight-valve, DOHC, 54-degree, liquid-cooled, V-twin engine is designed to produce a massive tractable power and responsive torque.
Huge 4.4-inch (112mm) forged aluminum-alloy pistons. These are one of the largest reciprocating gasoline engine pistons being used in any production passenger car or motorcycle while featuring a race-proven design to reduce friction and inertial mass.
Each of the large cylinders is lined with Suzuki's race proven Suzuki Composite Electrochemical Material (SCEM) for optimum heat transfer, tighter piston-to-cylinder clearances, and reduced weight.
Suzuki Advanced Sump System (SASS), a compact dry sump lubrication system, provides reduced engine height, a lower crankshaft position, and a lower center of gravity.
Suzuki's class-leading electronic fuel-injection system features the Suzuki Dual Throttle Valve system (SDTV) with 56mm throttle bodies, which maintains optimum air velocity for smooth low- to mid-range throttle response.
A unique two-stage cam drive system creates a compact cylinder head design, reduces overall engine height, and creates a lower center of gravity.
A dual spark plug per cylinder ignition system is controlled by a powerful 32-bit ECM for improved combustion efficiency and reduced exhaust emissions.
A three-piece, 9.5-liter volume airbox (with dual intakes) includes two pleated fabric air cleaner elements located on both sides of the engine.
The 2-1-2 stainless steel blacked-out exhaust system features Suzuki's digitally controlled SET (Suzuki Exhaust Tuning) system for optimum engine performance and a powerful V-twin sound.
Sculpted engine features blacked-out engine covers that complement the visually striking cylinders with symmetrical, highlighted cooling fins.
A wide-ratio, constant-mesh five-speed transmission features a high fifth gear ratio for relaxed highway cruising.
Low-maintenance shaft drive is clean-running and has minimal torque reaction as it efficiently transmits power to the massive 18-inch rear tire.
A high-tensile steel double cradle frame is built to comfortably handle all the power and torque while delivering agile handling and a plush, smooth ride.
The massive, low-profile 240/40 x 18 is the widest rear tire ever used on a Suzuki motorcycle.
Blacked-out, inverted front forks feature race-proven cartridge internals with 46mm stanchion tubes and provide 5.1 inches of smooth wheel travel.
Cast aluminum alloy swingarm works with a progressive linkage and a single rear shock absorber; adjustable spring preload to suit rider and passenger weight.
Twin front fully floating disc-brakes with dual-piston calipers and a single-disc rear brake with a single dual-piston caliper are ready to haul the bike down from speed.
Flat-bend, drag-style handlebars are mounted on pull-back risers to be positioned within a short distance from the seat to improve the rider/machine interface, aiding comfort and control.
The long-stretch fuel tank holds a full 5.2 gallons of fuel (4.9 gallons for California model).
The tank-mounted analog speedometer also features an LCD odometer, dual trip meters, a fuel gauge, and a clock.
Instrument cluster including a digital tachometer, gear position indicator, and LED indicator lights is integrated into the top of the headlight cowl.
Both rider and passenger seats are made for comfort, as they allow freedom of movement, accommodate riders of different sizes, and are well cushioned.
A sporty solo-seat cover (included) can be quickly swapped for the passenger seat for an even more aggressive look or for use on solo rides.
The M109R B.O.S.S. (Blacked Out Special Suzuki) features the following:
• Blacked-out exhaust system, clutch cover, magneto cover, cylinder head covers, air cleaner cover, and final drive case.
• Blacked-out handlebars, clutch and brake levers, handlebar switch cases, rearview mirrors, fuel tank/instrument cover, front and rear wheels, front and rear brake calipers, frame side covers, rear fender stays, sidestand, steering stem clamps, and front forks.
• Clear tail light and turn signal lenses.
Genuine Suzuki accessory options for the M109R B.O.S.S. include a black finish engine guard set and trim-fitting, functional saddlebags.
A variety of Genuine Suzuki Accessories for Boulevard owners are available, including a large selection of Suzuki logo apparel.
12-month limited warranty. Longer warranty coverage period with other benefits are available through Suzuki Extended Protection (SEP).
|Price - Warranty (Months)||12|
|Price - Warranty (Condition)||Limited|
|Engine - Engine Type||V Twin|
|Engine - Cylinders||2|
|Engine - Engine Stroke||4-Stroke|
|Engine - Cooling||Liquid|
|Engine - Valves||8|
|Engine - Valves Per Cylinder||4|
|Engine - Valve Configuration||DOHC|
|Engine - Bore (mm)||112|
|Engine - Bore (in)||4.41|
|Engine - Stroke (mm)||90.5|
|Engine - Stroke (in)||3.56|
|Engine - Displacement (cc)||1783|
|Engine - Displacement (ci)||108.8|
|Engine - Compression Ratio||10.5:1|
|Engine - Starter||Electric|
|Engine - Fuel Requirements||Regular|
|Engine - Fuel Type||Gas|
|Engine - Turbocharged||No|
|Engine - Supercharged||No|
|Carburetion - Fuel Injector||Yes|
|Carburetion - Fuel Injector Size (mm)||56|
|Carburetion - Carburetor||No|
|Carburetion - Carburetion Type||Fuel Injected|
|Transmission - Transmission Type||Manual|
|Transmission - Number Of Speeds||5|
|Transmission - Overdrive||Yes|
|Transmission - Primary Drive (Rear Wheel)||Shaft|
|Transmission - Primary Drive (Engine / Transmission)||Gear|
|Transmission - Gear Ratio (1)||2.187|
|Transmission - Gear Ratio (2)||1.4|
|Transmission - Gear Ratio (3)||1.038|
|Transmission - Gear Ratio (4)||0.827|
|Transmission - Gear Ratio (5)||0.685|
|Transmission - Reverse||No|
|Transmission - Final Drive Ratio||2.823|
|Dimensions - Length (in)||96.5|
|Dimensions - Length (mm)||2450|
|Dimensions - Width (in)||34.4|
|Dimensions - Width (mm)||875|
|Dimensions - Height (in)||44.5|
|Dimensions - Height (mm)||1130|
|Dimensions - Wheelbase (in)||67.3|
|Dimensions - Wheelbase (mm)||1710|
|Dimensions - Turning Radius (ft)||10.8|
|Dimensions - Ground Clearance (in)||5.1|
|Dimensions - Ground Clearance (mm)||130|
|Dimensions - Length (ft)||8.04|
|Dimensions - Length (ft/ft)||8|
|Dimensions - Length (ft/in)||0.5|
|Weight - Wet Weight (lbs)||764|
|Weight - Wet Weight (kg)||347|
|Capacities - Fuel Capacity (gal)||5.2|
|Capacities - Fuel Capacity (l)||19.5|
|Construction - Frame||Steel|
|Construction - Body Material||Steel|
|Foot Pegs - Foot Peg Location||Driver and Passenger|
|Foot Pegs - Adjustable||No|
|Exterior Guards - Chain Guard||No|
|Exterior Guards - Engine Case Guard||Yes|
|Exterior Guards - Fork Guards||Yes|
|Exterior Guards - Saddle Bag Guard||No|
|Exterior Guards - Belt Guard||No|
|Exterior Guards - Hand Guards||No|
|Exterior Guards - Brush Guard||No|
|Exterior Guards - Heel Guards||No|
|Exterior Guards - Light Guard||No|
|Exterior Covers - Side Cover||Yes|
|Stand - Stand Type||Kick|
|Front Suspension - Front Suspension Type||Inverted Fork|
|Front Suspension - Front Suspension Size (in)||1.8|
|Front Suspension - Front Suspension Size (mm)||46|
|Front Suspension - Front Travel (in)||5.1|
|Front Suspension - Front Travel (mm)||130|
|Front Suspension - Front Adjustable Fork Pre-Load||No|
|Front Suspension - Front Adjustable Rebound Damping||No|
|Front Suspension - Front Central Suspension Strut||No|
|Front Suspension - Steering Damper||No|
|Rear Suspension - Rear Suspension Type||Twin Sided Swing Arm|
|Rear Suspension - Rear Travel (in)||4.6|
|Rear Suspension - Rear Travel (mm)||118|
|Rear Suspension - Rear Adjustable Shock / Spring Pre-Load||Yes|
|Rear Suspension - Rear Adjustable Rebound Damping||No|
|Rear Suspension - Number Rear Shock Absorbers||1|
|Rear Suspension - Rear Suspension Material||Aluminum|
|Rear Suspension - Air Adjustable||No|
WHEELS & TIRES
|Wheels - Wheels Composition||Aluminum|
|Wheels - Tube / Tubeless||Tubeless|
|Wheels - Front Wheel Width (in)||3.5|
|Wheels - Rear Wheel Width (in)||8.5|
|Wheels - Chromed||No|
|Tires - Tire Brand||Dunlop®|
|Tires - Front Tire Width||130|
|Tires - Front Tire Aspect Ratio||70|
|Tires - Front Tire Speed Rating||V|
|Tires - Front Wheel Diameter||18|
|Tires - Rear Tire Width||240|
|Tires - Rear Tire Aspect Ratio||40|
|Tires - Rear Tire Speed Rating||V|
|Tires - Rear Wheel Diameter||18|
|Tires - Front Tire (Full Spec)||Dunlop® 130/70 R18 M/C 63V|
|Tires - Rear Tire (Full Spec)||Dunlop® 240/40 R18 M/C 79V|
|Brakes - Front Brake Type||Dual Hydraulic Disc|
|Brakes - Front Brake Diameter (in)||12.2|
|Brakes - Front Brake Diameter (mm)||310|
|Brakes - Rear Brake Type||Hydraulic Disc|
|Brakes - Rear Brake Diameter (in)||10.8|
|Brakes - Rear Brake Diameter (mm)||275|
|Seat - Seat Type||One-Piece|
|Seat - Adjustable||No|
|Seat - Seat Material||Leather|
|Seat - Seat Location||Driver and Passenger|
|Seat - Folding||No|
|Seat Specifications - Seat Height (in)||27.8|
|Seat Specifications - Seat Height (mm)||705|
|Seat Specifications - Number Of Seats||2|
|Seat Tail Cover||Standard|
|Grab Rail or Strap||Standard|
|Temperature Warning - Temperature Warning Type||Light|
|Fuel Level Warning||Standard|
|Fuel Level Warning - Fuel Level Warning Type||Gauge|
|Headlight(s) - Type||Halogen|
PAINT & FINISH
|Steering - Steering Control||Handlebar|
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
